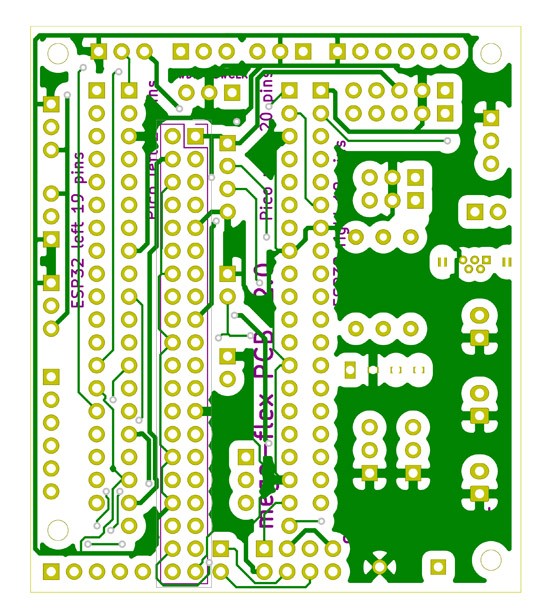

This custom PCB is currently undergoing a series of iterative design cycles with front and back images from the KiCAD software shown above.

The design aims for this PCB are for a single design to:

• allow it to connect to any of the Raspberry Pi SBCs as well as to the ESP32 and Pico microcontrollers, where their individual sets of GPIO pins are through-connected to the common set of PCB based features;
• to have onboard slide switches that can be used to 'set' the logical on/off and operation mode of the robot;
• to provide direct interface connections for:
  • two I²C connections;
  • a PCA9685 servo control module;
  • two simple/direct servo connections;
  • a 4-pin interface for an ultrasonic sensor (3V3 only!);
  • two simple 2-pin interfaces for 'bump' switches;
  • a 3-pin interface for a PIR/microwave sensor input;
  • 6 GPIO pins for controlling a single L298N motor controller; and
  • for when the Pico microcontroller is used a separate 2x4-pin interface for an ESP-01 module.
• a RGB LED and passive buzzer will also be directly connected to PCB; and
• a power bus provided with microUSB and JST connectors and a jumper connection so that both the system controller and any connected devices can be powered from a single source such as a 5V rechargeable 'power bank'.
